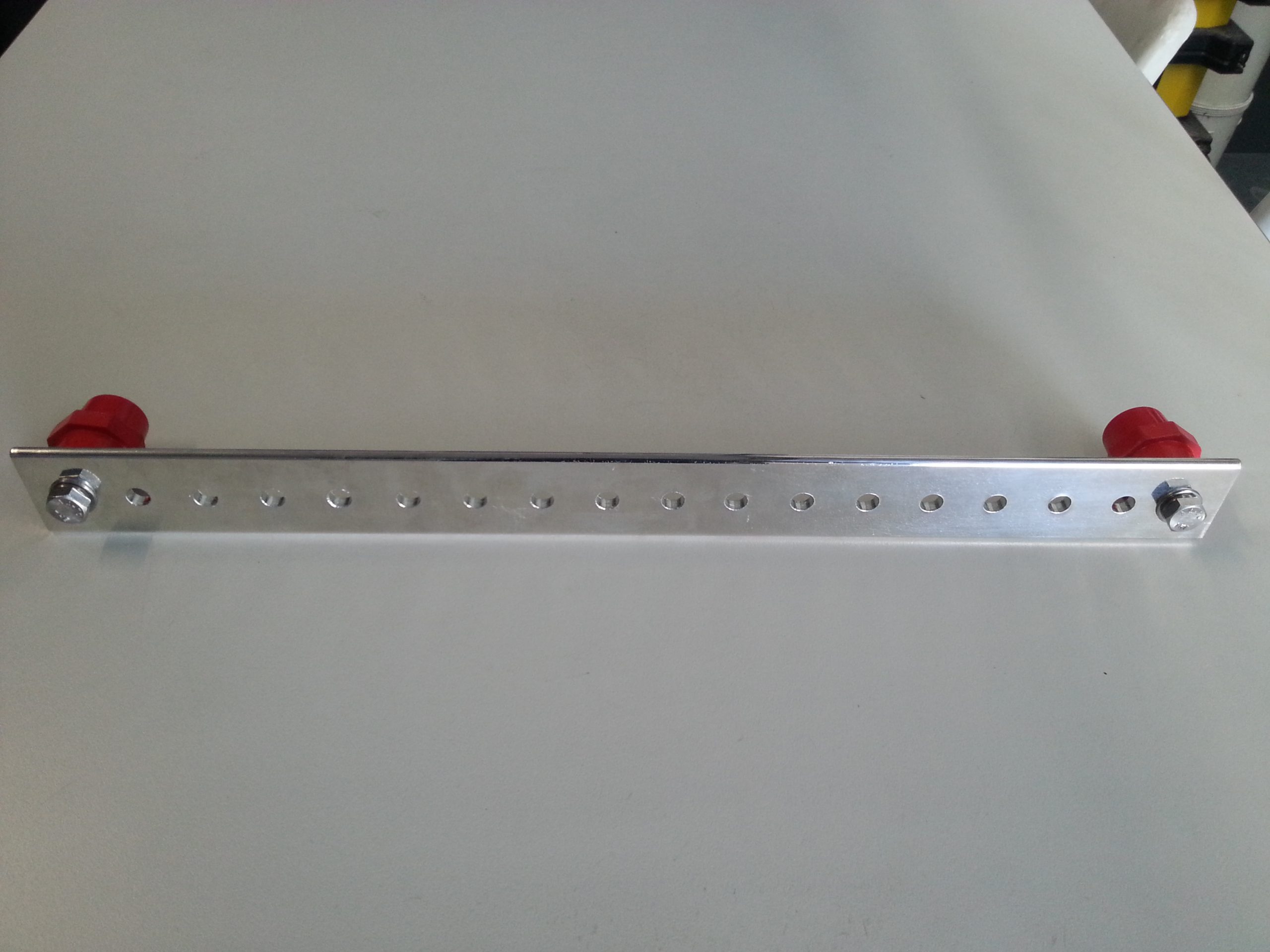

EB1000506 Grounding Busbar 1000 x 50 x 6 Tinned Copper with Insulators and SS hardware

Description Click here for product brochure Proper bonding is essential to create an equipotential plane between service grounds and equipment during fault and transient conditions. This equipotential plane provides a near-zero voltage differential, and serves to protect people and equipment during these events. The grounding busbar is the most popular bonding product in use today. FEATURES Provides a convenient, single-point grounding and bonding location Conductors are welded to the bar using a nVent ERICO Cadweld exothermic connection or are mechanically fastened by using lugs Custom bars can be designed and manufactured to customer specifications SPECIFICATIONS Part Number EB1000506 Article Number Material Tinned Copper Busbar Configuration Busbar, Insulators, Brackets and Fasteners Hole Pattern Mounting Hole Size Length 1000 mm Width 50 mm Thickness 6 mm Tin Plating Yes Pigtail Included No Standard Packaging Quantity 1 pc UPC 7 EAN-13 Diagrams are representative of the hole pattern. The number of holes is dependent on the length of the grounding busbar. Additional configurations are available by special order. Note special orders may incur additional lead time.
